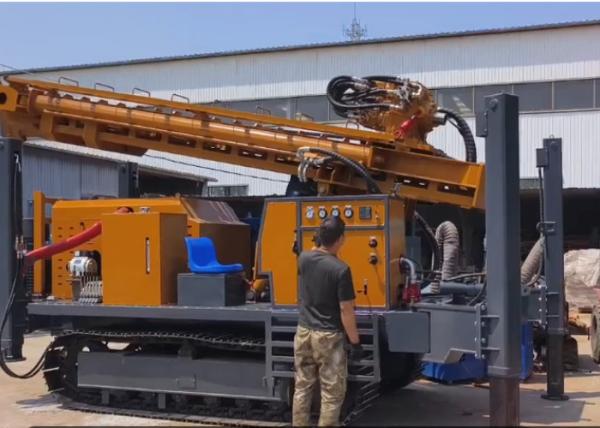

1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole

  • 1
  • 2

Brand Name : JINZHOU SHITAN

Model Number : ST-1000

Certification : ISO

Place of Origin : Jinzhou ,China

MOQ : 1 set

Price : 1500-5000$

Payment Terms : T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Product Name : ST 1000 Pneumatic Deep Drilling Rig

Key Words : Pneumatic Drilling Rig ,Water Well Drilling Rig ,rig Drilling,water Borewell Machine,drilling Rig Machine,borehole Drilling Machine,water Drilling Machine,water Well Drilling Rig,hydraulic Drilling Machine, Drilling Rig Machines

Drilling Depth : 1000 Meters

Hole Diameter : Customized

Drilling Rods : 76mm,89mm,112mm

Condition : New

Weight : 20 T

Warranty : 12 months

Contact Now

Product Description:

Our factory produce Pneumatic water well drilling rig,ST180/200/260/300s/350/350s/400/450/450s/500S/600S/800S/1000S,Robust pneumatic water well drills efficiently bore 100-1000 meter depths. Utilizing powerful compressed air, they deliver high-impact percussion for rapid penetration in diverse formations. Ideal for remote locations, these reliable, low-maintenance rigs provide essential deep groundwater access for communities, agriculture, and industry. Versatile and eco-friendly drilling solutions.

Product Features:

Widely applicable to various geological formations: The 1000 meter water well drilling rig is suitable for various geological formations, including soil layers, rock layers, and gravel layers, with high adaptability and stability
1. Large drilling depth: These drilling rigs are usually designed for drilling depths of up to or exceeding 1000 meters, meeting the needs of deep well drilling
2. Superior performance parameters: With a large output torque, lifting capacity, and speed range, it is suitable for drilling operations under various geological conditions. Equipped with high-performance engines and hydraulic systems, it ensures stable operation in various ground conditions

Technical Parameters:

Model ST450 ST500 ST600 ST800 ST1000
Drilling Depth 450m 500m 600m 800m 1000m
Drilling Hole Diameter 105-350mm 105-350mm 105-400mm 105-500mm 105-500mm
Working wind pressure 1.25-3.5Mpa 1.25-3.5Mpa 1.25-3.5Mpa 1.25-3.5Mpa 1.25-3.5Mpa
Gas consumption 16-55m³/min 16-55m³/min 16-55m³/min 16-55m³/min 16-55m³/min
Drill pipe length 6m 6m 6m 6m 6m
Drill pipe diameter 89mm 89/102mm 89/102mm 89/102mm 89/102mm
Axial pressure 4T 6T 6T 6T 6T
Lifting force 30T 36T 38T 42T 45T
Lifting speed 20m/min 20m/min 20m/min 20m/min 20m/min
Fast forward speed 40m/min 47m/min 47m/min 47m/min 47m/min
Maximum turning torque 9900/NM 14000/NM 18000/NM 20000/NM 22000/NM
Maximum rotation speed 85/170r/min 80/160r/min 80/160r/min 80/160r/min 80/160r/min
Lifting force of small auxiliary winch 1.2T 3T 3T 3T 3T
High leg travel 1.35m 1.35m 1.35m 1.35m 1.35m
Footage efficiency 10-35m/h 10-35m/h 10-35m/h 10-35m/h 10-35m/h
Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h
Weight 10T 12T 14T 18T 20T
Overall dimension 5.6×2×2.5 6.2×2.1×2.5 6.2×2.1×2.5 6.2×2.2×2.5 6.2×2.2×2.5
Engine Yuchai 92KW Yuchai 92KW Yuchai 176KW Yuchai190KW Kangmingsi242 KW

Support and Services:

We offer comprehensive technical support and service for our Pneumatic Borewell Machine. Our team of qualified technicians can provide assistance and guidance for the installation, maintenance, and repair of the product. We also provide advice and solutions to any operational problems you might encounter..

We are committed to providing the highest level of customer service and satisfaction, and to ensure that your Pneumatic Borewell Machine is working properly. If you have any questions or concerns, please do not hesitate to contact us.

Packing and Shipping:

The Pneumatic Borewell Machine is normally shipped by 20 FCL or 40 HQ Container.

And Wooden Box packing is optional according to customer's requirement.

FAQ:

Q: What is the brand name of the Pneumatic Borewell Machine?

A: The brand name of the Pneumatic Borewell Machine is Shitan.

Q: What is the model number of the Pneumatic Borewell Machine?

A: The model number of the Pneumatic Borewell Machine is ST-1000

Q: Where is the Pneumatic Borewell Machine manufactured?

A: The Pneumatic Borewell Machine is manufactured in Jinzhou, China.

Q: How long does it usually take to drill a borewell?

A: It usually drill 20-40 meters per hour,one day one borehole.

Q: Is the Pneumatic Borewell Machine suitable for hard soil?

A: Yes, the Pneumatic Borewell Machine is suitable for all soil layers ,especially rocky stone hard areas.

Jinzhou Shitan Machinery Co., Ltd. is a company specializing in the production and processing of pneumatic water well drilling rig, crawler drilling rig, various crawler chassis, mud pumps, transport vehicles and ect. It is one of the excellent manufacturers of similar products in North China with strong technical force, modern production equipment and complete QC system.

Air compressor: Kaishan air compressor, Zhigao air compressor, liufuda air compressor, Atlas Copco, Youli etc

Hydraulic tower, folding tower, 30 impact drill track chassis, triangular tower and other specifications of track chassis can be customized.

Bw150, bw160, bw200, bw250 and other series mud pumps.

Drilling rig: xy-1/xy-1A/XY-2/gk180/gk200/gy150/gy200/ST30/ST50

Assembly: gearbox assembly, rotatory assembly, winch assembly, reducer assembly and pump body assembly of various drilling rigs.

Drilling tools: such as casing joint, casing coupling, drill pipe joint, casing core pipe, extractor, automatic drop hammer, sampler, wrench fork, pad fork, lock joint, alloy bit, composite bit, diamond bit and so on.

1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
1000 Meters Deep Underground Pneumatic Drilling Rig For Water Well Borehole
