Heavy Machine For Drilling Water Well With Mud Pump / Air Compressor

  • 1
  • 2

Brand Name : SHITAN

Model Number : ST-300

Certification : ISO,CE

Place of Origin : Hebei ,China

MOQ : 1SET

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 1000set

Delivery Time : 5-8 workday

Packaging Details : Wooden Box

Type : Rotary Drilling Rig

Use : Water Well

Power Type : Diesel

Drilling Diameter : 105-305MM

Drilling Depth : Max.300m

Drill pipe length : 1.5m/3m/6m

Weight : 8T

Contact Now

Efficient deep hole drilling

The ST300 water well drilling rig is designed for industrial and geothermal drilling, with a maximum drilling depth of 300m, a hole diameter of 105-305mm, and a drilling efficiency of 10-35m/h. It is suitable for loose layers and bedrock, and can meet the needs of large-diameter and deep-hole operations. It is a boon to arid areas.

Why Choose Us

  • Powerful power system - equipped with Yuchai 78KW diesel engine, with abundant power.
  • High torque output - maximum torque of 8900N·m, easily cope with hard rock formations.
  • Dual-speed rotation - 85/170r/min adjustable speed, adapt to different geological conditions.
  • Hydraulic top drive technology - more stable drilling, reducing the risk of drill sticking.
  • Global after-sales service network - provide 24-hour technical support and quickly respond to customer needs.
  • High cost performance - optimize production costs and provide more competitive prices.

Basic Specifications

Model ST300
Depth Max300
Drilling Hole Diameter 75-305mm

Axial pressure

4T

Lifting speed

20m/min

Maximum rotation speed

85/170r/min

Maximum turning torque

8900

Video outgoing-inspection Provided

Transportation method

1.Preferred Shipping Methods:
Full Container Load (FCL): 1 unit/20'GP or 2 units/40'HQ
Breakbulk Shipping: For projects requiring partial shipments
RORO Service: Available for wheel-mounted configurations

2.Key Logistics Services:
√ Professional seaworthy packaging (weatherproof + shockproof)
√ Complete export documentation (Packing List, Commercial Invoice, BL)
√ Pre-shipment inspection reports available

Heavy Machine For Drilling Water Well With Mud Pump / Air CompressorHeavy Machine For Drilling Water Well With Mud Pump / Air Compressor

Heavy Machine For Drilling Water Well With Mud Pump / Air Compressor

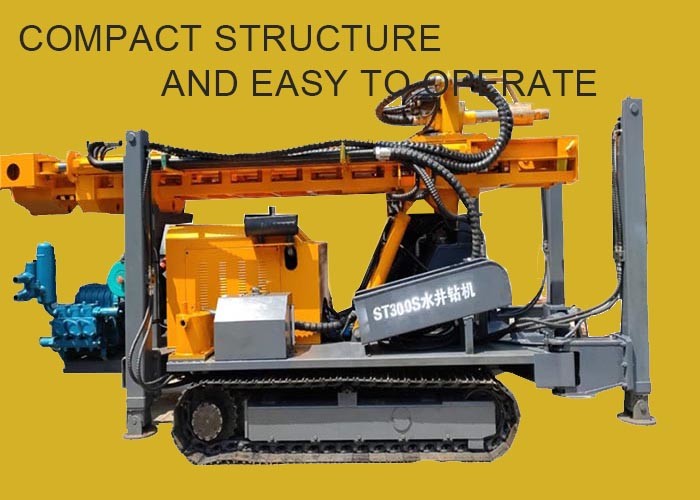

Product details display

Heavy Machine For Drilling Water Well With Mud Pump / Air Compressor

Heavy Machine For Drilling Water Well With Mud Pump / Air Compressor
