Foundation Borehole / Water Well Digging Machine With 6m Tower

  • 1
  • 2

Brand Name : SHITAN

Model Number : ST-300

Certification : ISO,CE

Place of Origin : Hebei, China

MOQ : 1SET

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 1000set

Delivery Time : 5-8 workday

Packaging Details : Wooden Box

Type : Deep water well drilling rig

Warranty : 1 Year

Color : customizable

Mobility : with crawler chassis easy to move

Power Type : Diesel

Machinery Test Report : Provided

Contact Now

ST300 Pneumatic Water Well Drill Machine

The ST300 water well drilling rig has a wide range of applications. It can be equipped with a mud pump or an air compressor for drilling. It can not only drill into soft layers and base layers, but also drill into hard rock layers. Its working air pressure is 1.25-3.5MPa and its gas consumption is 16-55m³/min. It is suitable for water wells, geothermal, industrial exploration and many other fields. It has been exported to the United States, Poland, Sweden, Germany, Dubai, Brazil, Mexico, Afghanistan, Malaysia, Vietnam, Thailand, South Africa, Namibia, Morocco, Congo and other countries, and has won good reviews.

Why Choose Us

  1. Large-diameter drilling - the drilling diameter range is 105-305mm, meeting the needs of various projects.
  2. Deep hole operation capability - the maximum drilling depth is 300m, suitable for deep wells and geothermal projects.
  3. Compact structure design - the whole machine size is 4.8m×1.9m×2.35m, suitable for narrow sites.
  4. Lightweight body - the whole machine weighs only 8T, which is more convenient for transportation and deployment.
  5. Wide applicability - suitable for water wells, geothermal, mineral exploration, industrial drilling and other scenarios.
  6. Sufficient supply of accessories - sufficient inventory of original accessories to reduce customer downtime waiting time.
  7. Training support - provide operation and maintenance training to help customers use equipment efficiently.
  8. Long-term partners - cooperate with many international engineering companies, and products are exported to overseas markets.

Basic Specifications

Model ST-300

Axial pressure

4T

Lifting speed

20m/min

Drilling Depth

300m

Drilling Hole Diameter

1105-300mm

Climbing degree

30

Walking speed

2.5km/h

Footage efficiency

10-35m/h

Overall dimension

4.8m×1.9m×2.35m

Weight

8T

Engine

Yuchai 78KW

Drill pipe length

1.5-6m

Transportation method

The ST300 Water Well Drilling Rig can be shipped worldwide via multiple transportation options to ensure timely and cost-effective delivery.

1.All packages include:
Drilling rig + drilling tools + spare parts + tool kit + operation manual + certificate

2.Standard Trade Terms:

  • EXW (Our Factory) - Buyer handles all transportation

  • FOB (Main Chinese Port) - We deliver to port of shipment

  • CIF (Destination Port) - We cover sea freight & insurance

  • CFR (Destination Port) - We arrange sea freight only

3. We handle all export formalities including:

  • Professional packaging

  • Customs clearance documentation

  • Origin certification

  • Insurance arrangement

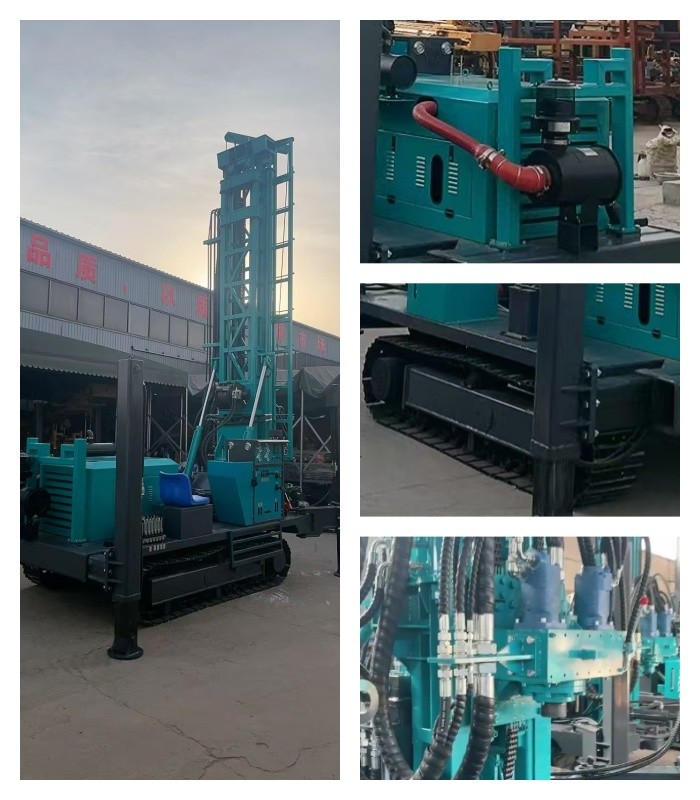

Product details display

Foundation Borehole / Water Well Digging Machine With 6m Tower

Foundation Borehole / Water Well Digging Machine With 6m Tower

Foundation Borehole / Water Well Digging Machine With 6m Tower

Real customer feedback

Foundation Borehole / Water Well Digging Machine With 6m Tower

Shipping

Foundation Borehole / Water Well Digging Machine With 6m Tower

Foundation Borehole / Water Well Digging Machine With 6m Tower
