Hydraulic Water Well Pneumatic Drilling Rig For DTH Blasting

  • 1
  • 2

Brand Name : JINZHOU SHITAN

Model Number : ST-1000

Certification : ISO

Place of Origin : Jinzhou ,China

MOQ : 1 set

Price : 1500-5000$

Payment Terms : T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Product Name : ST 1000 Pneumatic Drilling Rig

Key Words : Pneumatic Drilling Rig ,Water Well Drilling Rig ,rig Drilling,water Borewell Machine,drilling Rig Machine,borehole Drilling Machine,water Drilling Machine,water Well Drilling Rig,hydraulic Drilling Machine, Drilling Rig Machines

Drilling Depth : 1000 Meters

Model : ST 1000

Hole Diameter : Customized

Drilling Rods : 76mm,89mm,112mm

Engine : Diesel Engine

Weight : 20 T

Warranty : 12 months

Contact Now

Product Description:

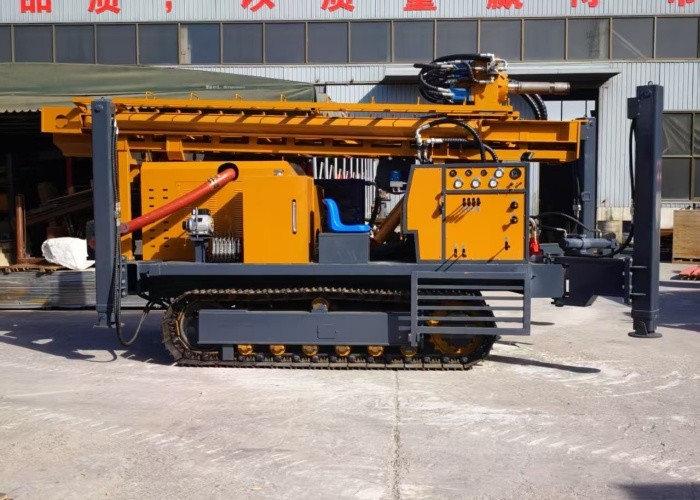

ST 1000 Pneumatic Water Well Drill Rig
Engineered for extreme-depth water access, this rig penetrates 1,000 meters through hard rock and complex strata. Its air-rotary system enables dry drilling in water-scarce regions, while 12,000 Nm torque powers through granite and basalt. Weighing 20 tons with modular mobility, it deploys rapidly to remote sites. Customizable hole diameters (76/89/112mm rods) and diesel/electric options maximize versatility. Deeper. Faster. Unstoppable.

Product Features:

Water-Independent Operation
Air-rotary system drills without water, ideal for arid regions or drought seasons. Eliminates mud-mixing logistics, cutting fluid costs by 100%.

Superior Speed & Stability
Compressed air clears cuttings instantly, enabling 45% faster penetration vs. conventional rigs. Real-time borehole stability monitoring reduces collapse risk.

Hard-Rock Dominance
12,000 Nm torque + high-frequency percussion crushes granite/basalt layers. Achieves ROP (rate of penetration) of 6-8m/hr in extreme formations.

Remote Mobility
Modular 20T design accesses rugged terrain. Containerized transport allows rapid redeployment (<48 hrs between sites).

Eco-Safe & Low OPEX
Zero fluid pollution; 30% lower fuel consumption vs. hydraulic rigs. Automated rod handling minimizes manual labor.

Technical Parameters:

Category

Parameter

Value

Core Performance

Max. Drilling Depth

1,000 meters

Drilling Method

Pneumatic (Air Rotary)

Torque Output

12,000 Nm (8,850 lb-ft)

Hole Diameter Range

150–300 mm (Customizable)

Power System

Engine Type

Diesel Engine (Electric Option)

Engine Power

220 kW (295 HP)

Air Compressor Pressure/Flow

25 bar / 24 m³/min (850 CFM)

Drill Rods

Diameter Options

76 mm, 89 mm, 112 mm

Rod Material

High-Strength Alloy Steel (Anti-Corrosion Coated)

Mobility & Structure

Operating Weight

20 Tons (18,000 kg)

Mast Height

18 meters (Hydraulic Folding)

Max. Slope Operation

≤25°

Transport

Containerized Dimensions (L×W×H)

9.5m × 2.5m × 3.2m (Standard 40HQ)

Site Assembly Time

< 8 hours

Environmental

Noise Level

< 110 dB (Diesel) / < 65 dB (Electric)

Compliance & Support

Certifications

ISO 9001

Warranty

12 Months (Global Coverage)

Service Response

24/7 Remote Support + 72h Onsite

Manufacturing

Place of Origin

Jinzhou, China

Support and Services:

Our commitment extends beyond the sale. Enjoy 24/7 global technical support and rapid response for your 1000m drill rig. Benefit from readily available genuine parts, expert field service teams, and comprehensive maintenance programs. We prioritize minimizing downtime and maximizing your rig's uptime and productivity. Proactive diagnostics and remote assistance ensure smooth operations. Invest with confidence – our dedicated partnership protects your ROI and guarantees long-term reliability. Your success is our service mission.

Packing and Shipping:

The Pneumatic Borewell Machine is normally shipped by 20 FCL or 40 HQ Container.

And Wooden Box packing is optional according to customer's requirement.

FAQ:

Q: What is the brand name of the Pneumatic Borewell Machine?

A: The brand name of the Pneumatic Borewell Machine is Shitan.

Q: What is the model number of the Pneumatic Borewell Machine?

A: The model number of the Pneumatic Borewell Machine is ST-1000

Q: Where is the Pneumatic Borewell Machine manufactured?

A: The Pneumatic Borewell Machine is manufactured in Jinzhou, China.

Q: How long does it usually take to drill a borewell?

A: It usually drill 20-40 meters per hour,one day one borehole.

Q: Is the Pneumatic Borewell Machine suitable for hard soil?

A: Yes, the Pneumatic Borewell Machine is suitable for all soil layers ,especially rocky stone hard areas.

Jinzhou Shitan Machinery Co., Ltd. is a company specializing in the production and processing of pneumatic water well drilling rig, crawler drilling rig, various crawler chassis, mud pumps, transport vehicles and ect. It is one of the excellent manufacturers of similar products in North China with strong technical force, modern production equipment and complete QC system.

Air compressor: Kaishan air compressor, Zhigao air compressor, liufuda air compressor, Atlas Copco, Youli etc

Hydraulic tower, folding tower, 30 impact drill track chassis, triangular tower and other specifications of track chassis can be customized.

Bw150, bw160, bw200, bw250 and other series mud pumps.

Drilling rig: xy-1/xy-1A/XY-2/gk180/gk200/gy150/gy200/ST30/ST50

Assembly: gearbox assembly, rotatory assembly, winch assembly, reducer assembly and pump body assembly of various drilling rigs.

Drilling tools: such as casing joint, casing coupling, drill pipe joint, casing core pipe, extractor, automatic drop hammer, sampler, wrench fork, pad fork, lock joint, alloy bit, composite bit, diamond bit and so on.
