Sanmeul Professional Water Well Diamond PDC Core Drilling Bit of Low Price
Product Description:
PDC drill bit for water well drilling and mining exploration
PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations. The application include in mining, civil engineering and the oil and gas industries.
Generally, it include the Three Wings, Four Wings, Five wings PDC Non-Coring Bits.
Sizes available:
59mm, 65mm, 75mm, 76mm, 90mm, 94mm, 99mm, 101mm, 113mm, 114mm, 120mm, 123mm, 126mm, 127mm, 133mm, 143mm, 152mm,
2 1/4", 2 3/8", 2 7/8", 3", 3 1/2", 3 7/8", 4 3/4", 4 3/8", 4 7/8", 5", 5 1/2", 5 1/4", 5 1/8", 5 5/8", 6", 6 3/4",
How to carry out daily maintenance for drill bit:
The most valuable part of the diamond compact bit is the cutting teeth in its working face. Because the cutting teeth in the diamond composite bit are polycrystalline diamond composite, and it is sintered in the environment of high temperature and high pressure, so the characteristics of diamond composite chip are relatively hard, but very brittle. Therefore, diamond bit is one of the relatively expensive vulnerable parts in underground engineering and geological exploration. This requires us to be careful in the packaging, transportation and use of diamond compact bits to prevent the "accidental injury" of diamond clad bits.
In addition, diamond compact bit is suitable for drilling in soft, medium and hard rock strata. When encountering different geological strata, the corresponding diamond clad bit should be used. Otherwise, the cutting teeth of the bit will be seriously worn, but the drilling speed will be reduced.
Our experience in the development and production of diamond compact bits for nearly 10 years can be summed up as follows: different diamond clad bits should be used in different geological environments. In addition, the first time to use them should be run in at a low speed for at least 30 minutes. In case of complicated geological environment, the rotation speed and axial pressure should be reduced, and the axial pressure will prevent the fracture of diamond clad bits.
Product Tags:
|
|

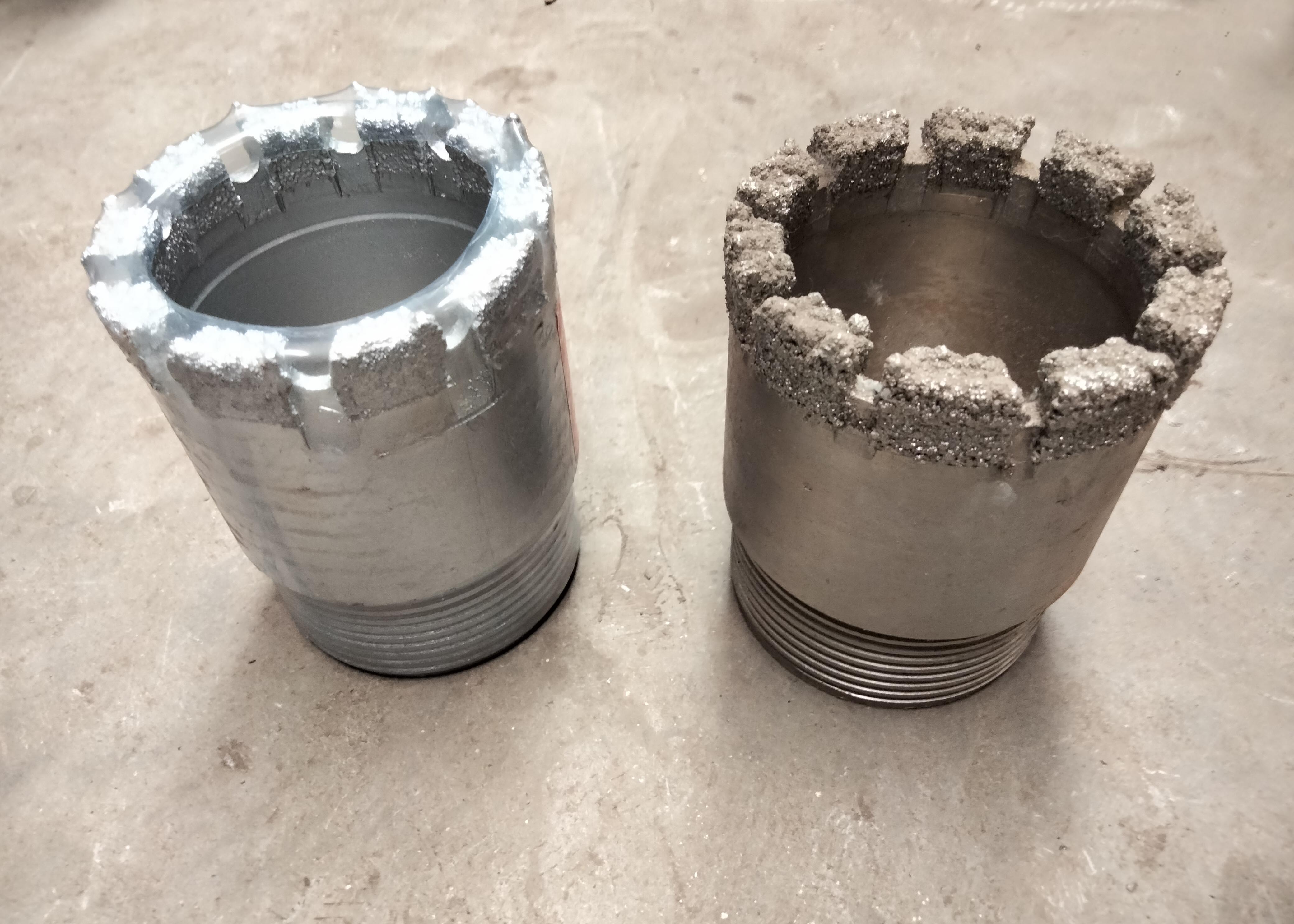

59mm Diamond Drilling 3 Wing Pdc Core Bit Images
|
