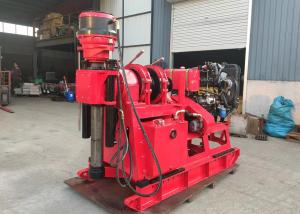

XY-2B Crawler Mounted Hydraulic Water Well Drilling Rig
Product Description
XY-2B water well drilling rig is a lightweight, efficient and multifunctional drilling equipment, The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile
and flexible wide application region etc.. Pneumatic well drill is especially suitable for water intake in mountainous and rocky
strata.
Product Specifications:
| Drilling capacity (m) | Φ73 rod | 100 |
| Φ60 rod | 320 |
| Φ50 rod | 380 |
| Φ42 rod | 530 |
Spindle speed(r/min) | Forward | 57;99;157;217;270;470;742;1024 |
| Reverse | 45;212 |
Max torque(Nm) | 2760 |
Drilling angle renge | 0-90° |
Spindle max pull force(KN) | 60 |
Spindle stroke (mm) | 600 |
Hoist max lift capacity with single rope (KN) | 30 |
Spindle inner dia (mm) | 76 |
Oil pump | SCB32/12 |
Power unit |
Electric motor | Y180L-4,22Kw |
Diesel engine | 395K2,19.85Kw |
Overal dimension (mm) | 2150×900×1690 |
Drill weight(excluding power)(kg) | 950 |
Product Features
Electric motor or diesel type hydraulic horizontal directional drilling machine
1. Hydraulic feeding drill rig for soil test and SPT equipment .
2.Engineering geological survey, hydrology, water wells,sky buildings,dams,harbors
bridge,oil exploration,etc
4.Power ,flexible and easy manitenance.
5.Small and light weighted core drill
6. Electric motor or diesel type hydraulic horizontal directional drilling machine
Applications:
XY-2B hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydro-geological, water well and pile grouting hole drilling. It is equipped with two-wheel trailor, in order to move easily.
How deep can you drill your own well?
Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area
What problems should be paid attention to when operating crawler type water well drilling rig
